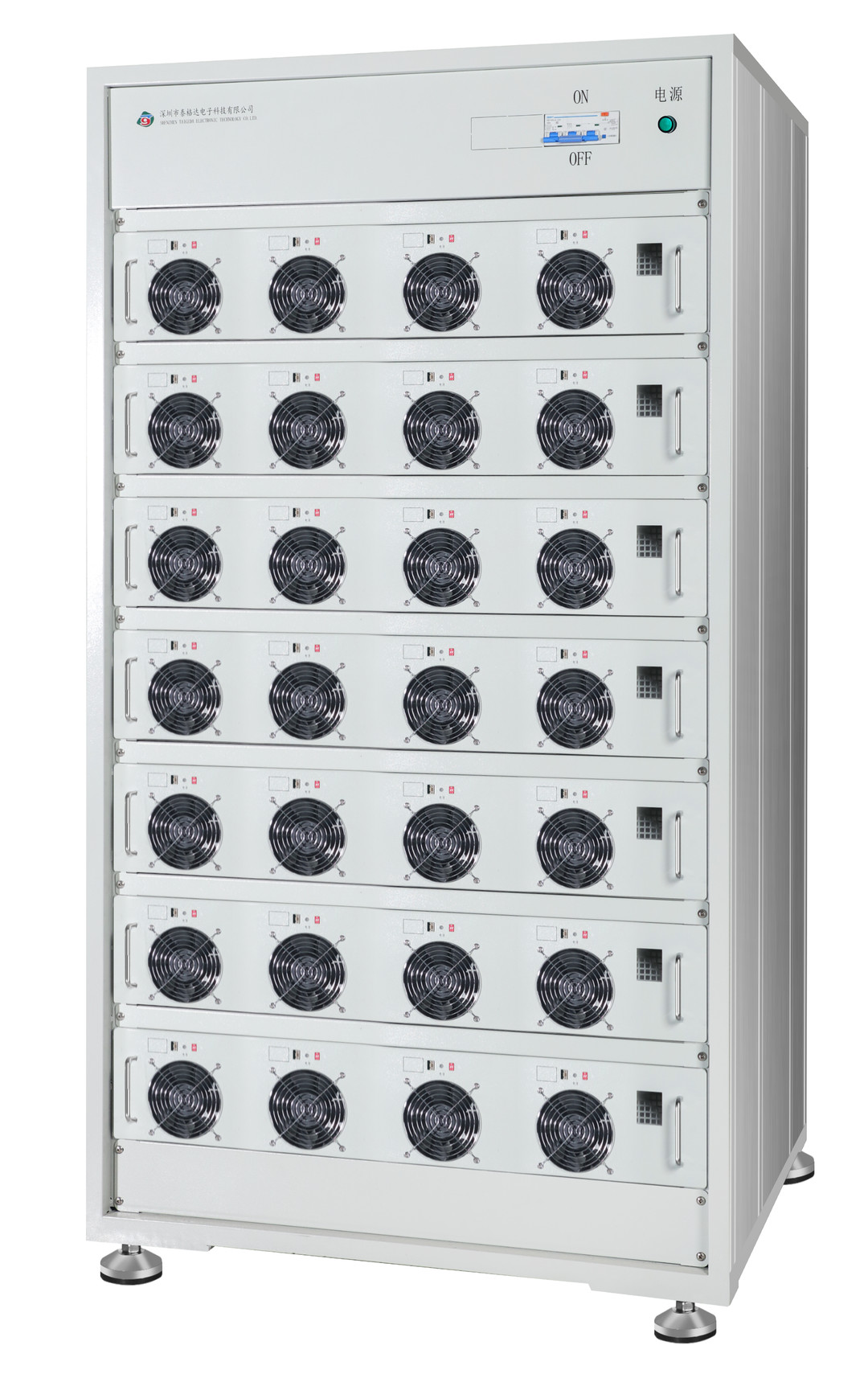

TG5009 BATTERY CHARGING AND DISCHARGING DETECTION EQUIPMENT
Application scope
This device is suitable for:
This equipment is suitable for: Life aging test and quality control during production or test, including li-ion battery, lead-acid battery, nickel-cadmiuma battery, nickel-hydrogen battery, etc.
Product characteristics
| 32-bit ARM main control chip | greatly improves the execution speed and accurately records the variation state of battery voltage |
| Scan code to Pnd data | Barcode scanning can accurately recall the previous battery aging parameters on the computer. |
| Protection&Exception Prompts | With anti-reverse connection function，voltage upper and lower limit protection set protection，test exception alarm prompt |
| CCCV Charging | There is no gap transition and no voltage and current shock during charging.can effectively prevent protection action and secondary protectionaction caused by islanding effect of PCB，or overshoot caused by heat concentration caused by peak current of electrode ear Current and voltage sampling is stable，high precision and long-term stability. |
| Voltage clamp | The voltage clamp is used to set the voltage to prevent damage to the battery or battery pack protection plate during charging when battery protection operation or equipment is abnormal. |
| Supported test items | ①Battery Cycle Life Test：②Battery capacity test；③Battery charging and discharging characteristics：④Battery charging capacity test |
| Data protection | Supports setting security protection conditions due to power failure，manual shutdown，step-by-step test from data Ples，or online parameter modiPcation. |
| Can be customized | ①Battery Pack Temperature Sampling：②Single-cell voltage sampling for battery pack：③Frequency output function；④Switch Action Function⑤MES connection function |
SpeciPcation parameters
| Product name | Battery charging and discharging detection equipment | Equipment working temperature | 0-35℃ |
| Model | 5009 100V10A 20A | Work noise | 65-75dB |
| Chassis size | H：1653mm、L：970mm、W：845mml | Maximum output power | Charging 28KW |
| Equipment weight | 240-340KG | Voltage range | discharge 56KW |
| Operating ambient temperature | 1-50℃ | Charging current | 0-100V |
| Operating environment humidity | 0-90%RH | Discharge current | 0.3-10A，accuracy ±1‰ 0.3-20A，accuracy ±1‰ |
| Input power | Three-phase four wire， AC380V±15%/50Hz+2Hz | Voltage and current resolution | 0.1mV、0.1mA |
| accuracy | ±0.1%FS |
