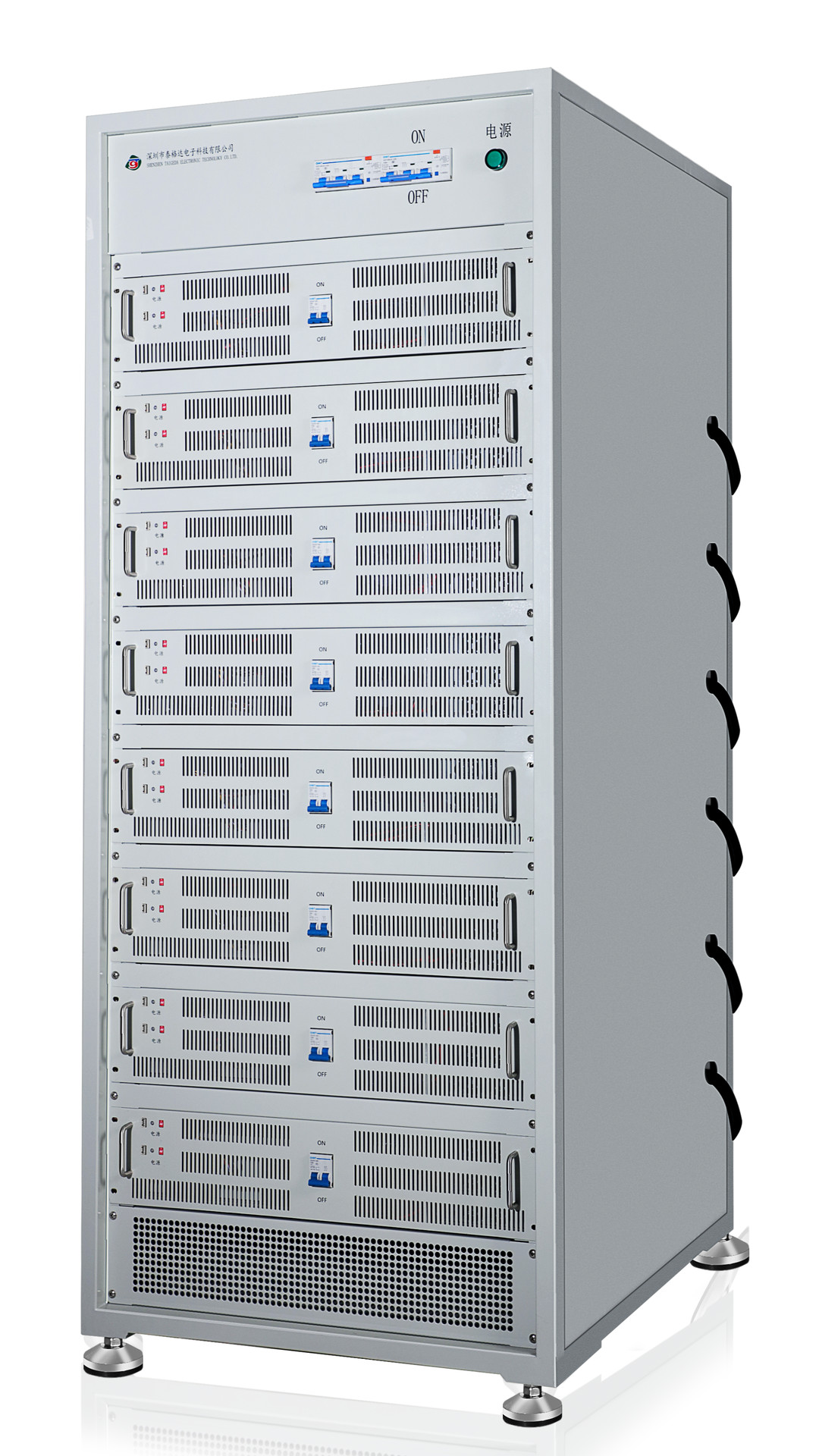

TG8008FEEDBACK TYPE BATTERY CHARGING AND DISCHARGING DETECTION EQUIPMENT
Application scope
This device is suitable for:
Battery module production inspection of battery manufacturer
Large-Current Charging and Discharge Detection for EV/HEV Power Battery System
Battery simulation test in actual road conditions
Maintenance of battery modules in battery factories and charging stations
The research organization carries out high current charging and discharging tests and battery performance tests on battery modules.
Product characteristics
| 32-bit ARM main control chip | The execution speed is greatly improved, and the changing state of battery voltage can be accurately recorded |
| Scan code to Pnd data | The previous aging parameters of the battery can be accurately retrieved on the computer by scanning the bar code |
| Protection&Exception Prompts | With anti-reverse function, voltage protection set protection, test abnormal alarm prompt |
| Energy feedback | Energy feedback, charge and discharge two-way energy saving, can save a lot of electricity costs, and save a lot of energy consumption heat generated by air conditioning electricity costs |
| CCCV Charging | No gap transition, no voltage, current impact during charging. It can effectively prevent the protection action and secondary protection action caused by the island effect of the PCB, or the overshoot caused by the heat concentration caused by the peak current of the electrode ear. Current and voltage sampling stability, high precision, good long-term stability. |
| Voltage clamp | The voltage clamp is used to set the voltage to prevent the battery or battery pack protection board from being damaged when the battery protection operation or device is abnormal during charging |
| Can be customized | ① battery temperature sampling function; ② battery pack single section voltage sampling function; ③ frequency output function; ④ switch action function; ⑤ Connect MES system functions |
SpeciPcation parameters
| Product name | Feedback type battery charging and discharging testing equipment | Working noise | ≦65-75dB |
| Product model | TG8008 100V C120A D120A | Maximum output power | 96KW |
| Chassis size | H：1938mm、L：950mm、W：985mm | Output voltage range | 0-100V |
| Equipment weight | ≦339KG | Charge and discharge | 0-100V Continuously adjustable |
| Operating ambient temperature | 1-50°℃ | Charge and discharge output current range | 200mA-120A Continuously adjustable |
| Ambient humidity | 0-90%RH | Voltage and current resolution | 0.01mV，0.01mA |
| Input power supply | Three-phase four-wire，AC380V±15%/50Hz±2Hz | precision | ±0.1%FS |
| Equipment operating temperature | 0-35℃ |
