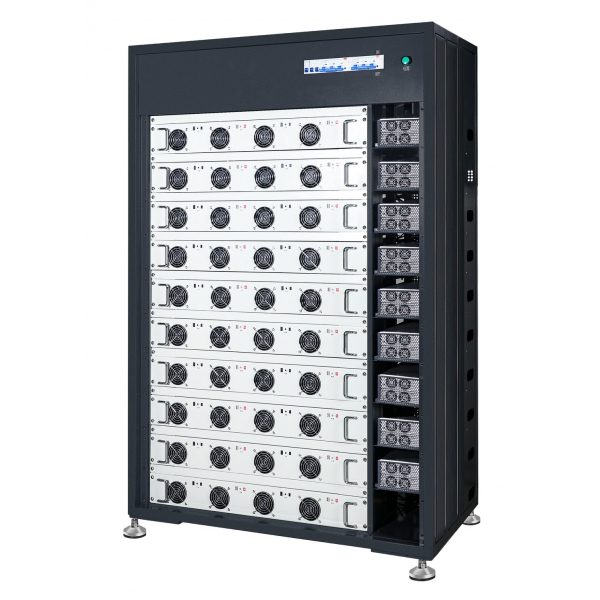

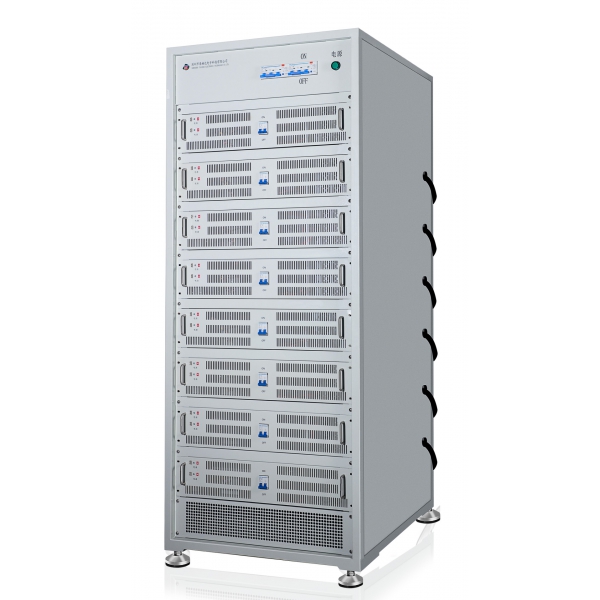

TG6000 CABINET TYPE BATTERY TESTER
Application scope
This device is suitable for:
Electric bicycle/motorcycle/gas battery, electric forklift battery, robot battery, electric boat battery, military battery, back power battery, power tool battery performance test. Supports battery capacity test, battery voltage test, battery charging and discharging test, and battery internal resistance test.
Product characteristics
| Data input | Start with the infrared code scanner（SN）and save the test data to the computer. |
| Functional mode | ①DC Electronic Load Mode：②Battery Production Test Quick Mode；③Correction mode |
| Can be customized | ①Battery Pack Temperature Sampling：②Single-cell voltage sampling for battery pack：③Frequency output function：④Switch Action Function⑤MES connection function；⑥Step-by-Step Test Mode |
SpeciPcation parameters
| Product name | Battery tester | Equipment working temperature | 0-35℃ |
| Model | TG6000-Double-layer cabinet/Cabinet type | Voltage range | 0-150V |
| Chassis size | Double layer H：1749.3mm*L：840mm*W：785mm Cabinet typeH：1195mm*L：990mm*W：670mm | Internal resistance range | 0-2000mΩ，accuracy 0.01mΩ |
| Equipment weight | Double layer<396KG Cabinet type≈145KG | overcharge current | 0-250A，accuracy ±0.1%o |
| Operating ambient temperature | 1-50°℃ | Overdischarge current | 0-1000A，accuracy ±0.1%。 |
| 使用環(huán)境濕度Operating environment humidity | 0-90%RH | Short circuit time | 0-2mS，accuracy ±0.1%。 |
| Input power | Double layer AC380V±15% Cabinet type AC220V±15% | Scan code test | 1-36b |
| Voltage and current resolution | 1mV，1mA |
